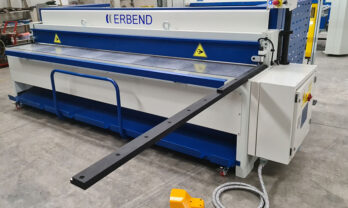

ERBEND EMS NC Motorized Shears
• 750 mm NC motorized back gauge system

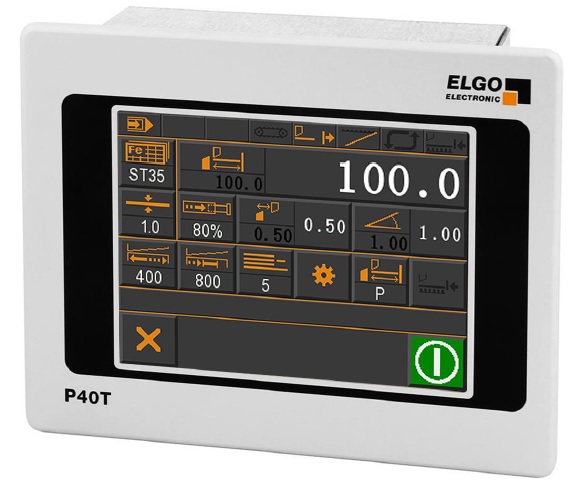

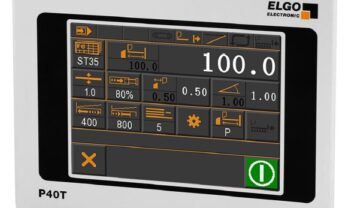

• ELGO P40T touchscreen digital NC controller unit
• Back light barriers and finger protection cover in front side.

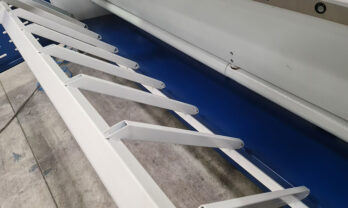

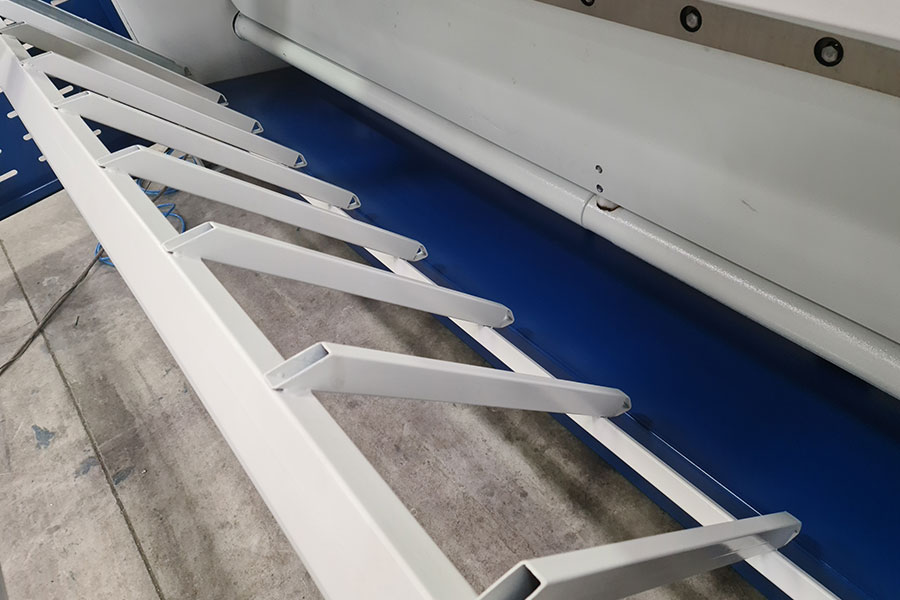

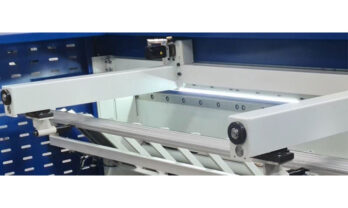

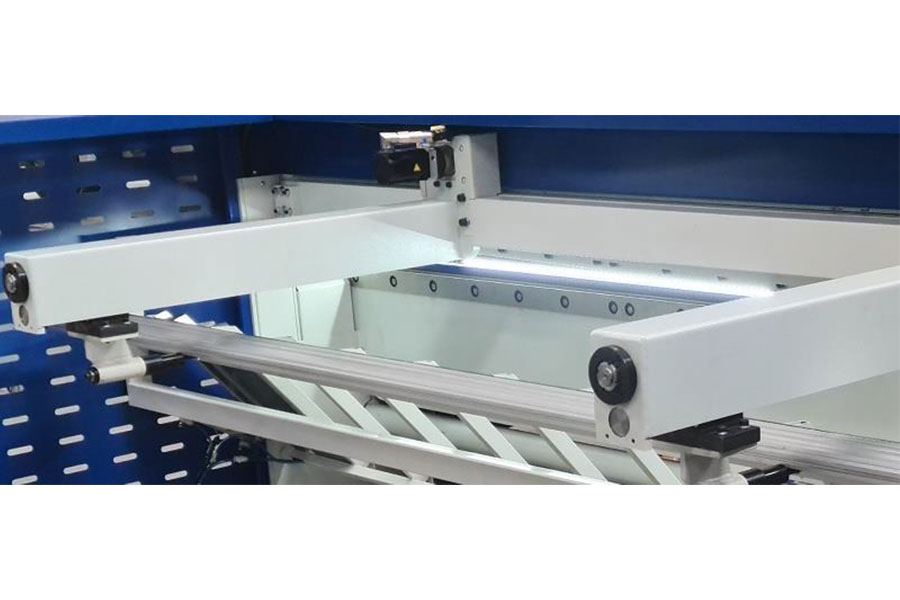

• Sliding front sheet support arms
• Shadow light and cutting line enlightment
• Suitable for CE norms
• 1000 mm NC motorized back gauge system

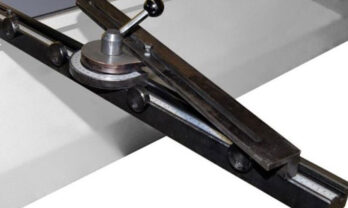

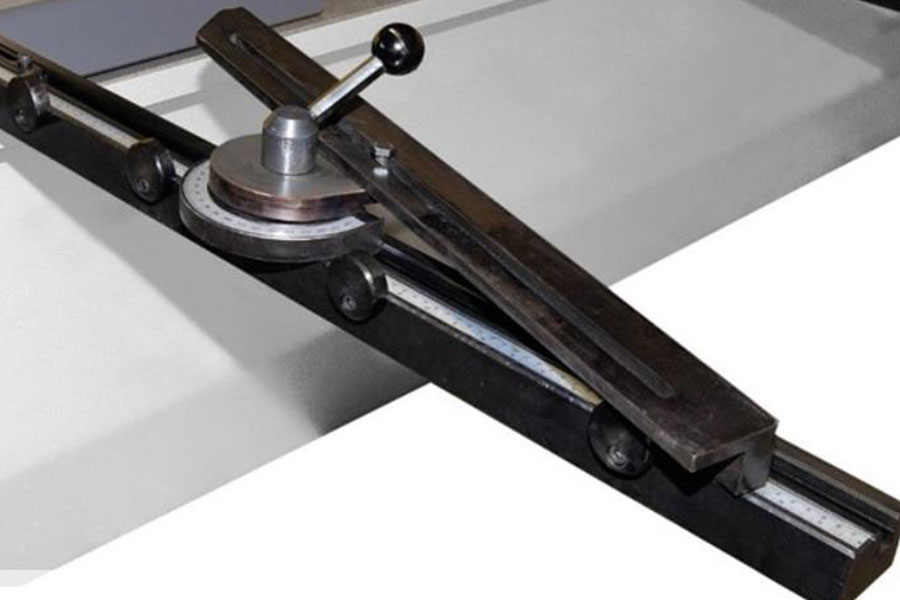

• 0-180° angular cutting device
• Pneumatic sheet support system
• Blade set as spares
Capacity and Dimensions
-
Unit of length :mm
-
Unit of weight :kg
-
Model:EMS 2030Sheet Length: 2050 Steel: 3 Stainless: 1,5 Aluminium: 4,5 Dimensions: 1700 / 2650 / 1300 Weight: 1700
-
Model:EMS 2040Sheet Length: 2050 Steel: 4 Stainless: 2,5 Aluminium: 6 Dimensions: 1700 / 3000 / 1300 Weight: 1800
-
Model:EMS 2525Sheet Length: 2550 Steel: 2,5 Stainless: 1,5 Aluminium: 4 Dimensions: 1700 / 3150 / 1300 Weight: 2200
-
Model:EMS 2540Sheet Length: 2550 Steel: 4 Stainless: 2,5 Aluminium: 6 Dimensions: 1700 / 3150 / 1300 Weight: 2300
-
Model:EMS 3220Sheet Length: 3200 Steel: 2 Stainless: 1,2 Aluminium: 3 Dimensions: 1700 / 3650 / 1300 Weight: 3100
-
Model:EMS 3240Sheet Length: 3200 Steel: 4 Stainless: 2,5 Aluminium: 6 Dimensions: 1700 / 3650 / 1300 Weight: 3200
-
Model:EMS 4015Sheet Length: 4050 Steel: 1,5 Stainless: 1 Aluminium: 2 Dimensions: 1700 / 4750 / 1600 Weight: 3350
