ERBEND UFA Manual Metal Folding Machine

• Vertical clamping with 200 mm stroke

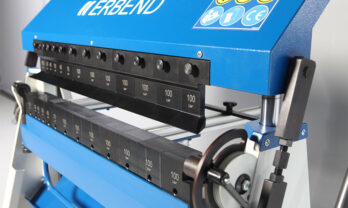

• Easy tool clamping system with specific Erbend design

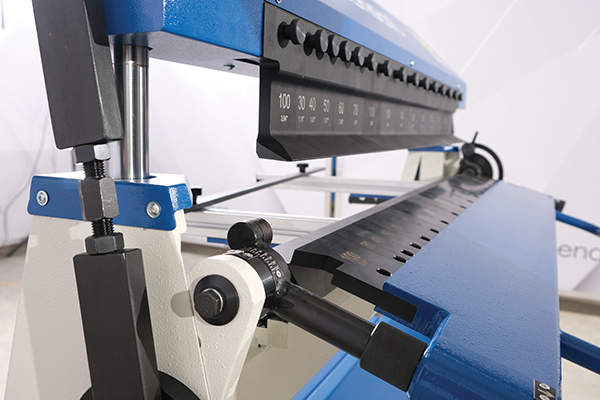

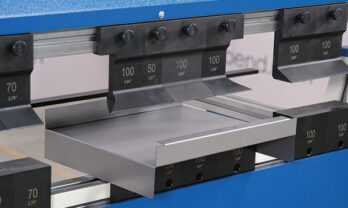

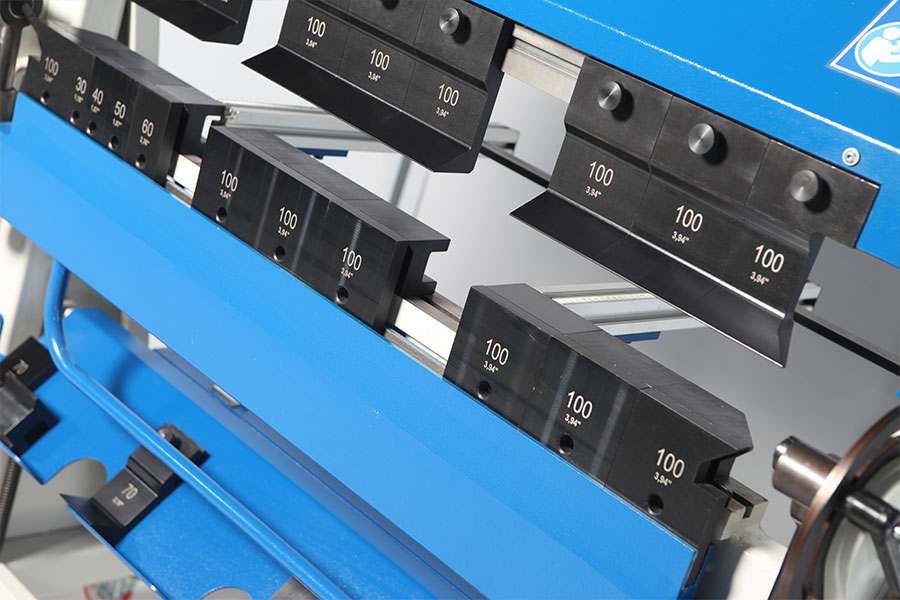

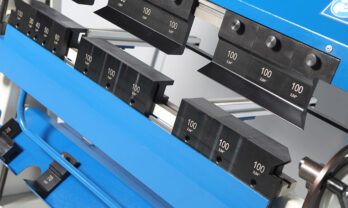

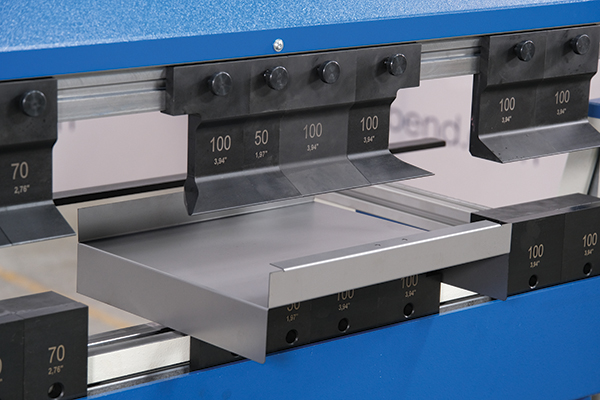

• All segmented tools are 42CrMo4 material, 60 HRC laser induction surface hardened and grinded

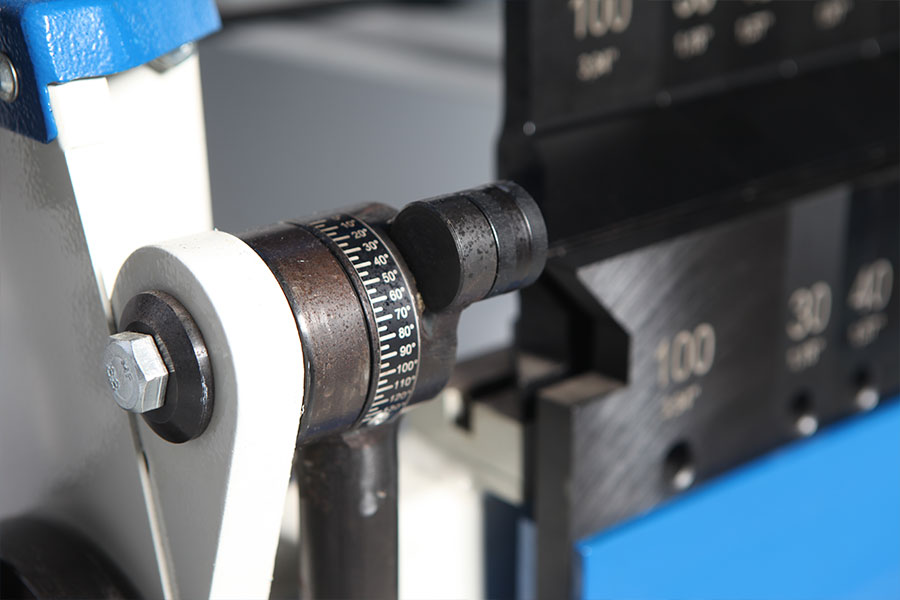

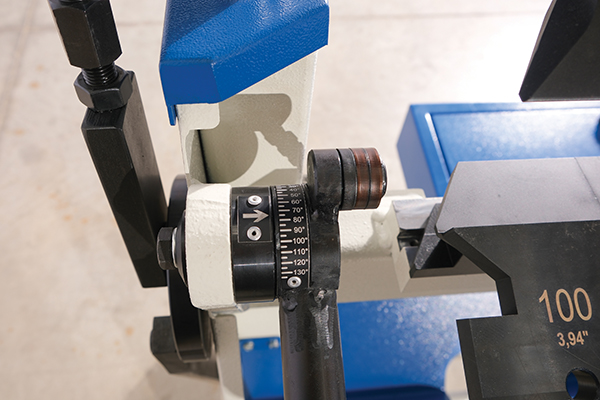

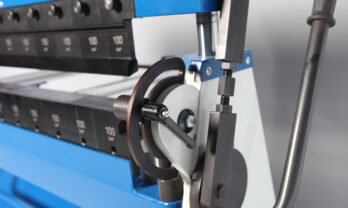

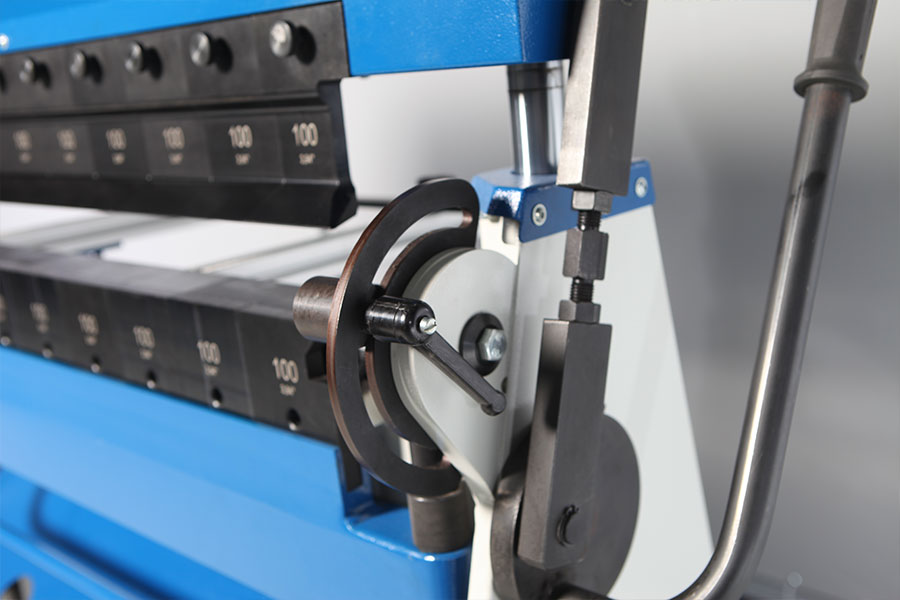

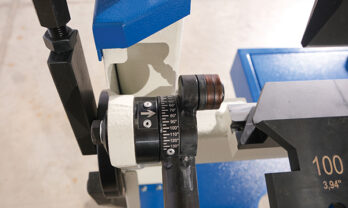

• Bending angle stabilization system
• Clamping beam stabilizer arm
• Clamping beam stabilizer foot pedal
• Easier clamping re-swivel thanks to special pressure springs
• Easier folding re-swivel thanks to special return springs

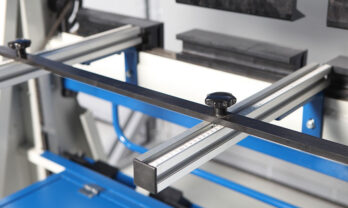

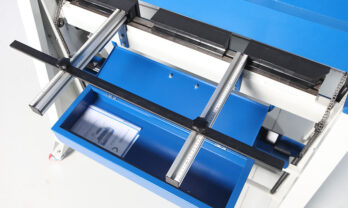

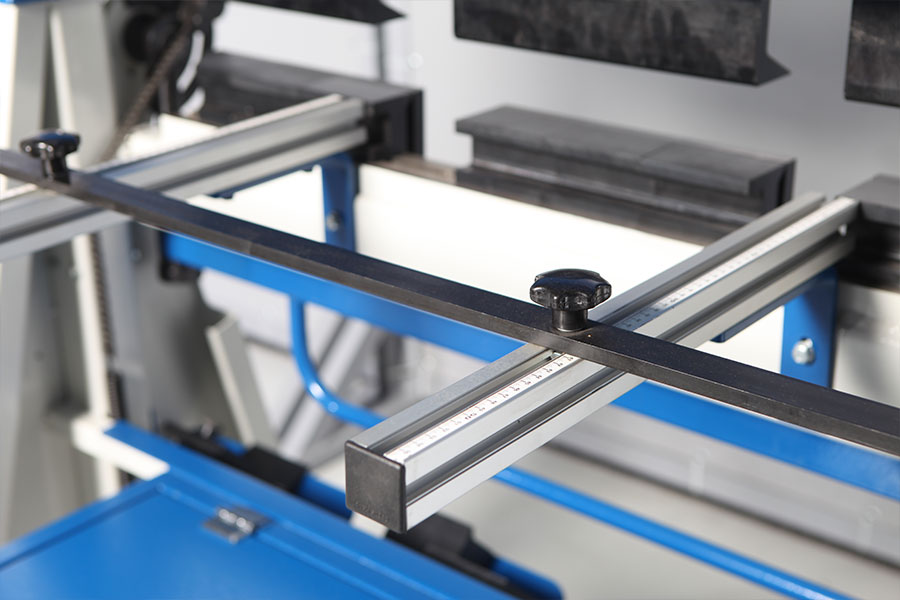

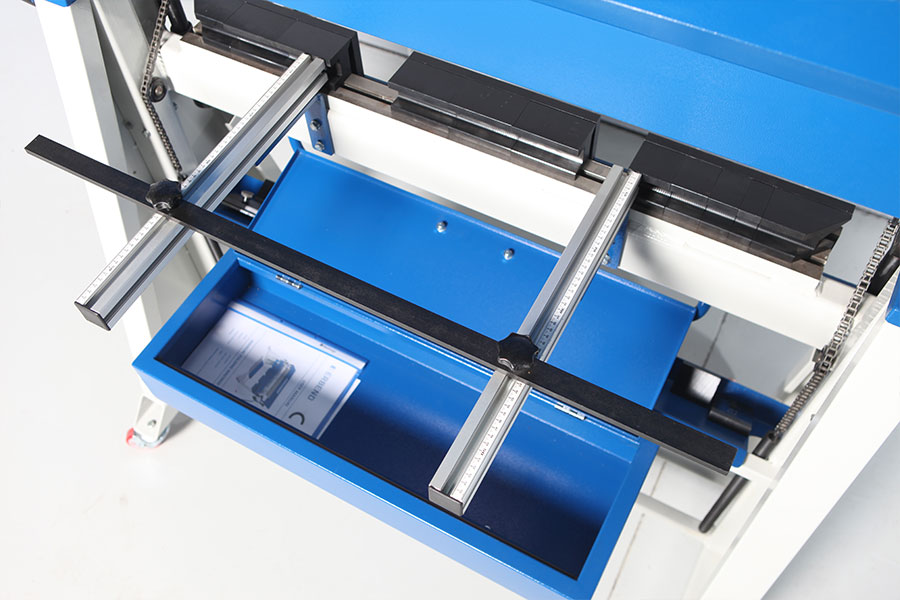

• 500 mm manual back gauge system
• Tool, accessory cabinet holder

Product Details

Capacity and Dimensions

Unit of length :

mm
Unit of weight :

kg
Model: UFA 1015

Sheet Length: 1050 Steel: 1,5 Stainless: 1 Aluminium: 2,2 Dimensions: 750 / 1300 / 1515 Weight: 280
Model: UFA 1212

Sheet Length: 1250 Steel: 1,25 Stainless: 0,8 Aluminium: 2 Dimensions: 750 / 1500 / 1715 Weight: 315
